EE5505 Analog Circuit Design

Fall 1998
Prof. Ramesh Harjani
Department of Electrical & Computer Engineering
(This class is taught both on campus and via UNITE)

Timing: 8:00 - 8:50 MWF, Mech E 108
Office Hours: 9:00 - 10:00 MWF EE/CSi 4-165
Course syllabus (PDF format download Adobe Acrobat to read)
Class project
Example project proposal from EE8185
Homework 1 (Due Monday, Oct 5th)
Homework 2 (Due Monday, Oct 12th)

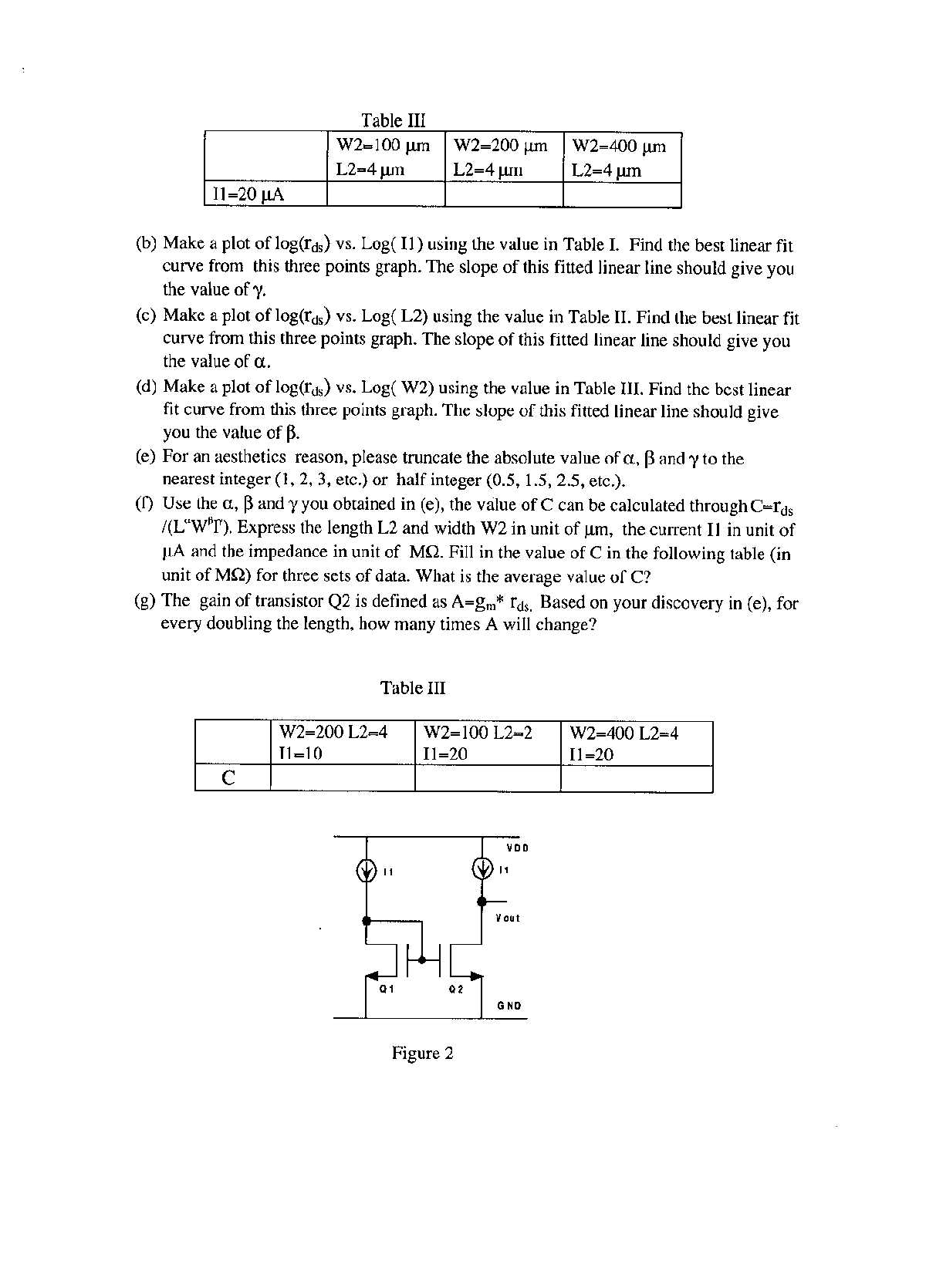

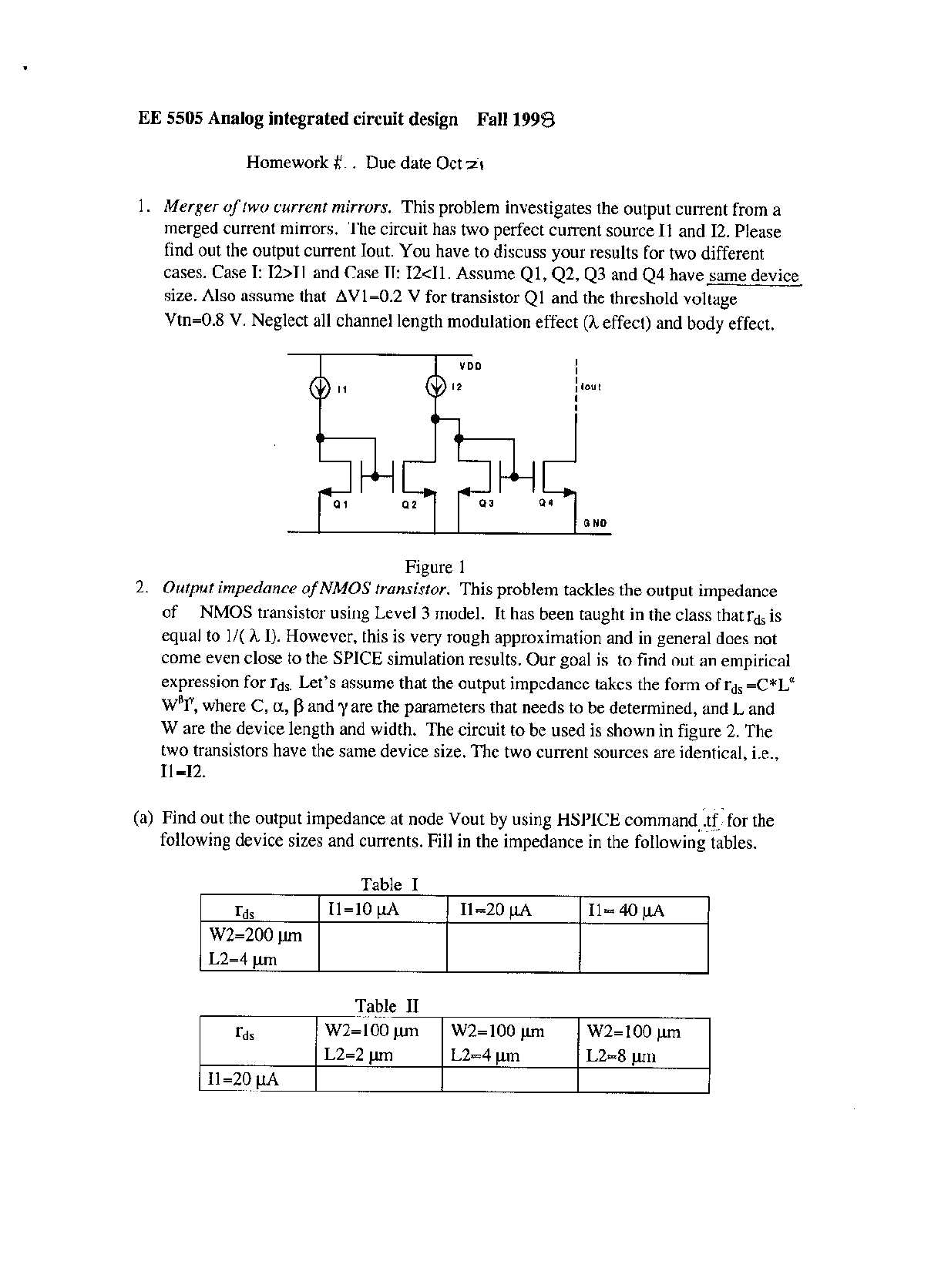

Homework 3 (page 1, page2) (Due Wednesday, Oct 21st)
Homework 4 (problems 3.10, 3.11, 3.12, 3.13, 3.14 & 4.1, 4.2, 4,3) (Due MOnday, Oct 26th)
Homework 5 (Due Monday, Nov 2nd)
Midterm II (Nov 2oth)

Miderm II (in PDF format). Correction: The tail current is 2 Ia. Please check new PDF file
OTA design (Mathcad document(PDF) (Mathcad Binary), PSPICE input file)
Final project reports due on last day of class December 4, 5pm
Final layouts (cif or gdsII) due on last day of class December 4, 5pm
Mosis technology to be used = 1.2micron AMI (ABN process) (December 16th)
Video lectures (Currently only works on windows machinces with Explores 4.0 or newer)
You need to download a plugin. Follow the links given below.
Lecture notes (available on the TA's website)

Primary book: Analog Integrated Circuit Design,
David Johns & Ken Martin , John Wiley & Sons, Inc. 1997
Reference book: CMOS Circuit Design, Layout, and Simulation, (also available at Amazon.com)
R. Jacob Baker, Harry W. Li and David E. Boyce,IEEE Press, 1998

HSPICE: We will be using HSPICE for simulation pursposes. HSPICE is similar to PSPICE.
- Use "module add hspice" to add HSPICE to path (you need to do this before you can run HSPICE)
  Type man module and/or ask a lab assistant if you have problems with this
- There is 1 Hspice manual is in the IT labs
- To generate output: In general hspice is similar to probe. Replace the ".probe" statement with a ".options post" statement.
- To run: type "hspice input.file > output.file" at unix prompt
- To view output: type "mwaves" at unix prompt. This is similar to probe. Note: is for tr0, tr1 for transient runs, sw0, sw1 for DC sweeps etc.
- Level 3, AMI 1.2u models for HSPICE
- BSIM 3.1, AMI 1.2u models for HPSPICE
- Find the newest models in MOSIS/Venders
- PSPICE models and symbols (available on TA's website)
MAGIC: Both Magic and HSPICE require you to load the appropriate modules. Ask a lab assistant to help you to do this.
- Magic manuals are available at the bookstore, (about $5.00)
  I was recently informed that they are also available on the web at Magic Manual Pages on the Web
- Scalable design MOSIS design rules
- Helpfull hints1, and More Helpfull hints
- MOSIS Pads directory. Use stuffed pad.
- Magic output can be printed in black-and-white using the Flea tool. Flea is in /project/software/magic.old/bin/flea and use the library in /project/software/magic.old/lib. You can make the appropriate changes in the PATH variables in your .cshrc file.

Other useful links
