CASCADE POSITIONAL CONTROL OF A DC MOTOR

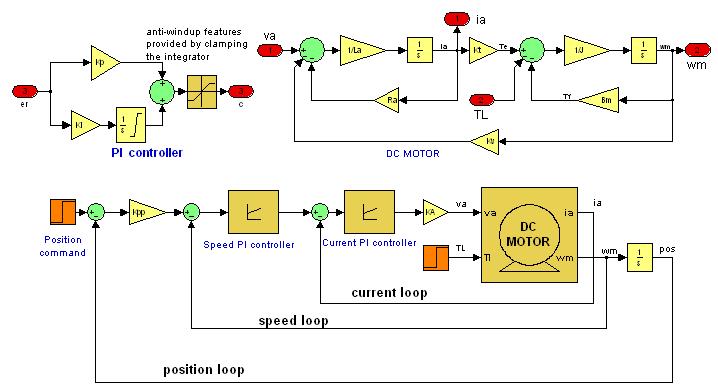

The block
diagram representation of the positional control system is shown below. The dc
motor is initially at standstill and position set a 0 radian when an initial
step of 1 radian is imposed followed later by a reduced step of 0.5 rad. A step

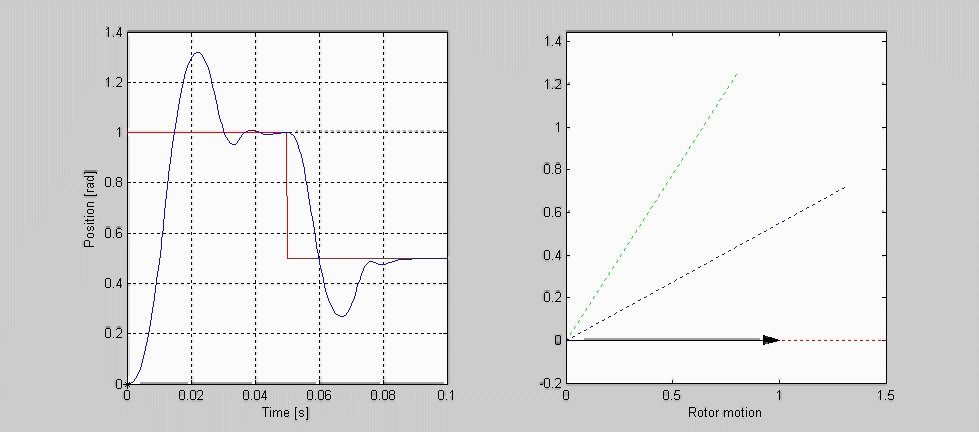

mechanical load is also applied at a specified time. The position transients are
illustrated.
